Immediate Availability from Our Jacksonville, FL Warehouse

Find Everything You Need for Your ESP System—Fast

To minimize downtime during maintenance and shutdowns, Envision keeps a ready stock of critical ESP components at our Jacksonville distribution center. Strategically located near I-95, our facility ensures short lead times and reliable delivery for customers across North America.
It’s more than our warehouse—it’s your supply safety net.

Get Quote

Collecting System

C480 Collecting Plate

C735 Collecting Plate

Z388 Collecting Plate

ZT24 CE Plate

GA CE Plates

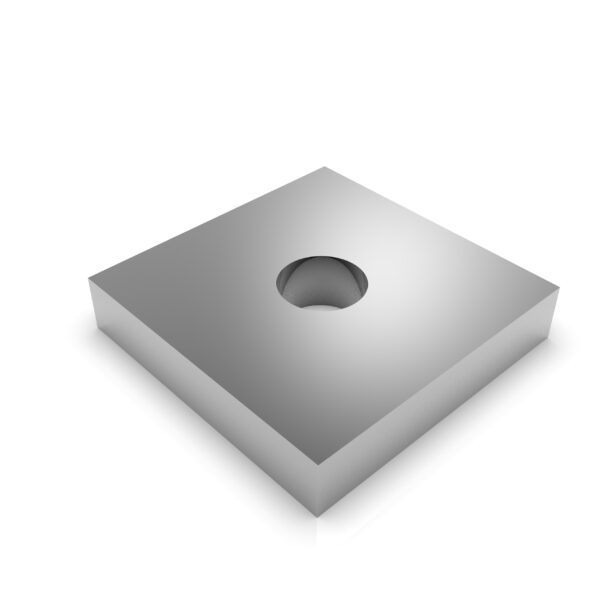

Washer, Plate Support

Positioner

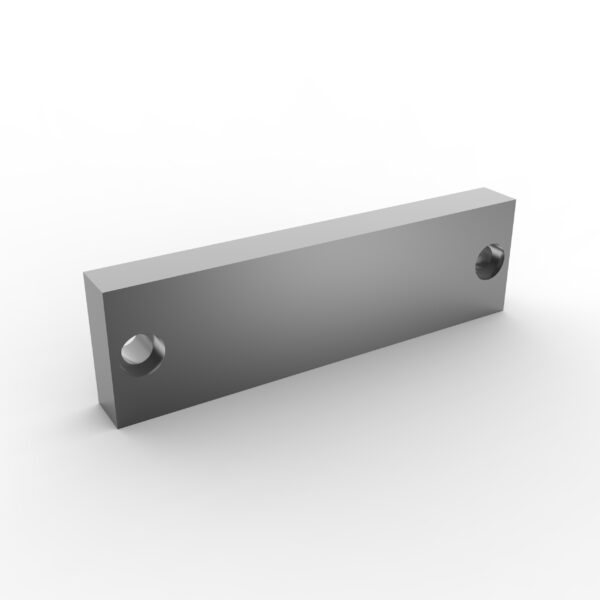

Anvil

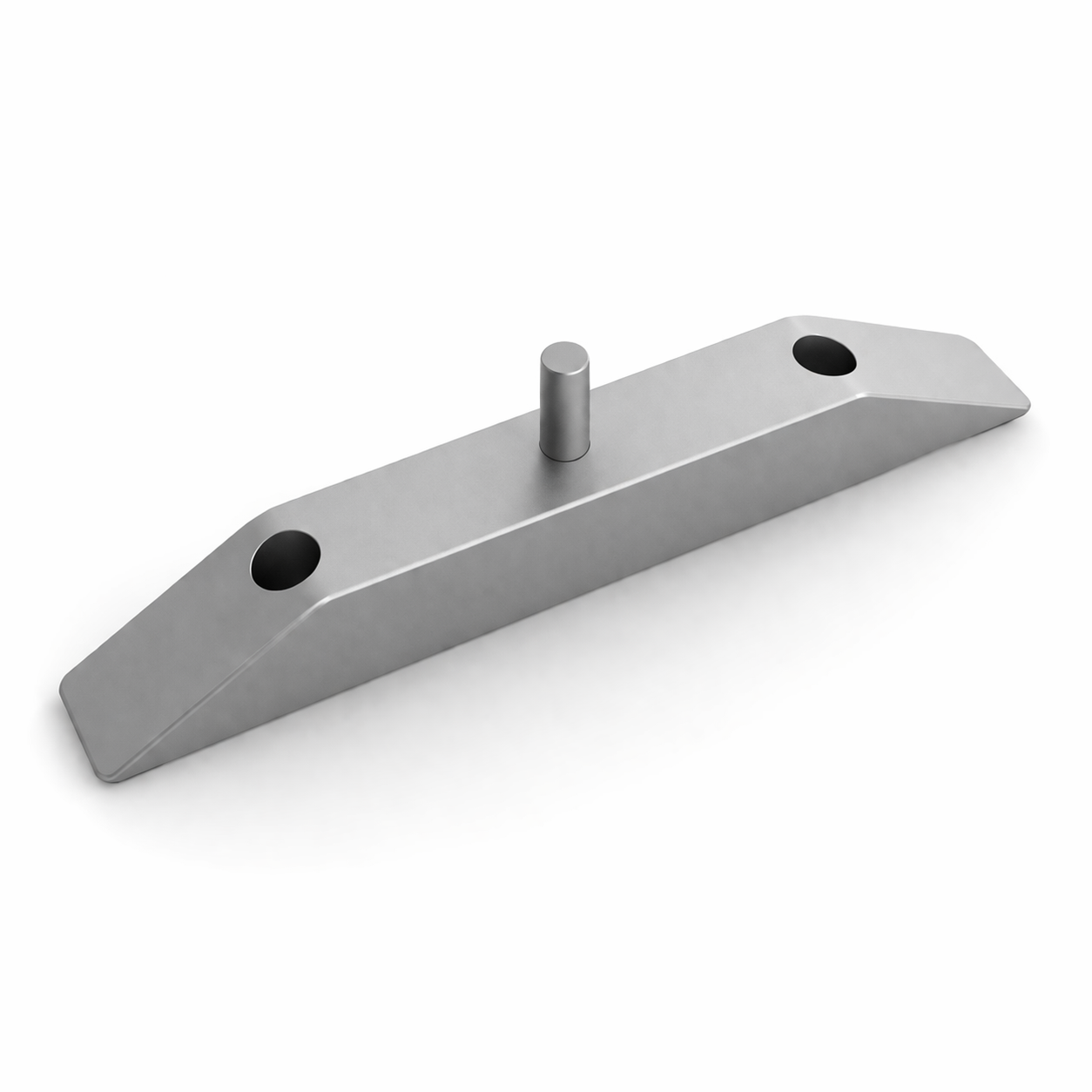

Spreader

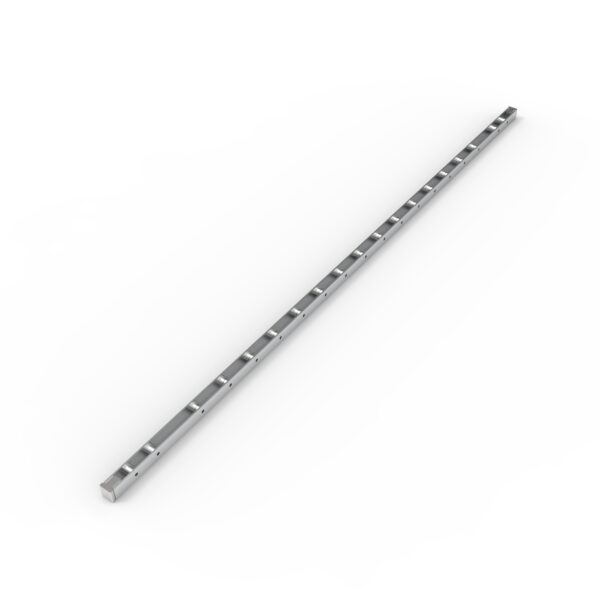

CE Rapping Bar

Discharging System

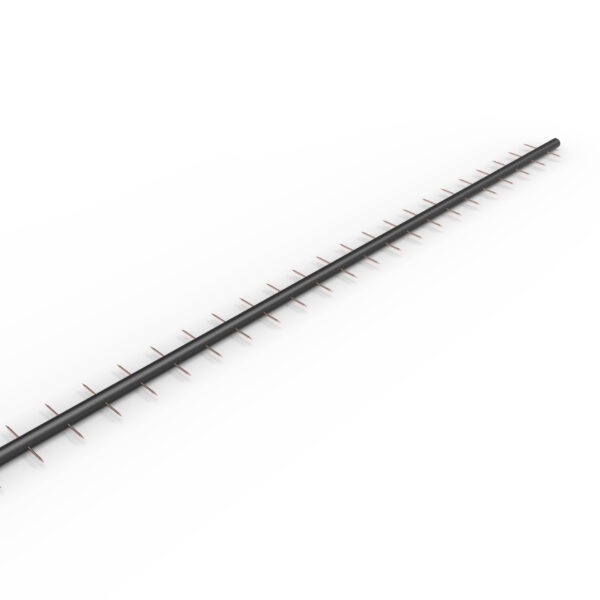

Rigid Discharge Electrode, SUS316L Tube

Rigid Discharge Electrode, variable pin spacing

V15 Discharge Electrode

Spring

Triple Spring Retainer

Anti-Sway Insulator

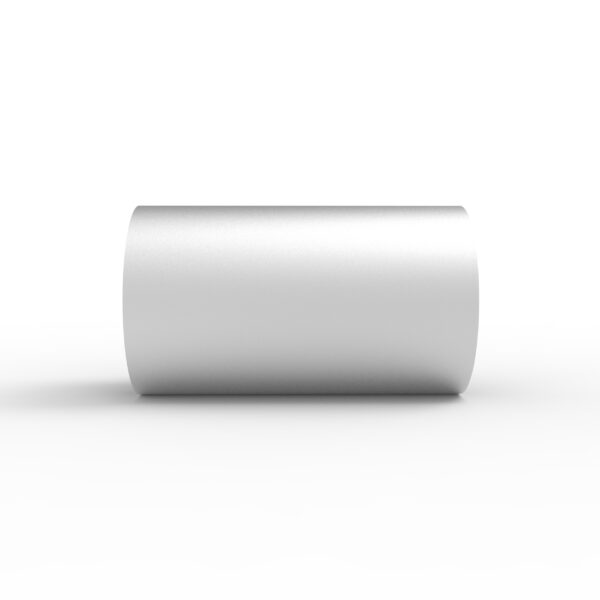

Insulator-Straight Alumina

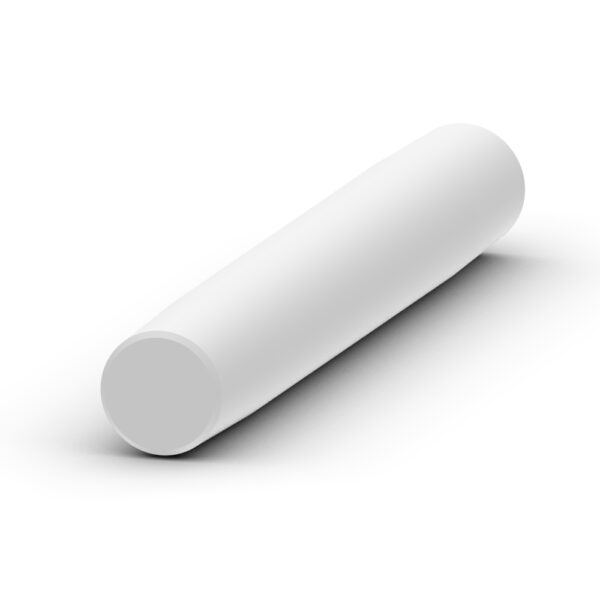

Rapper Insulator Rods

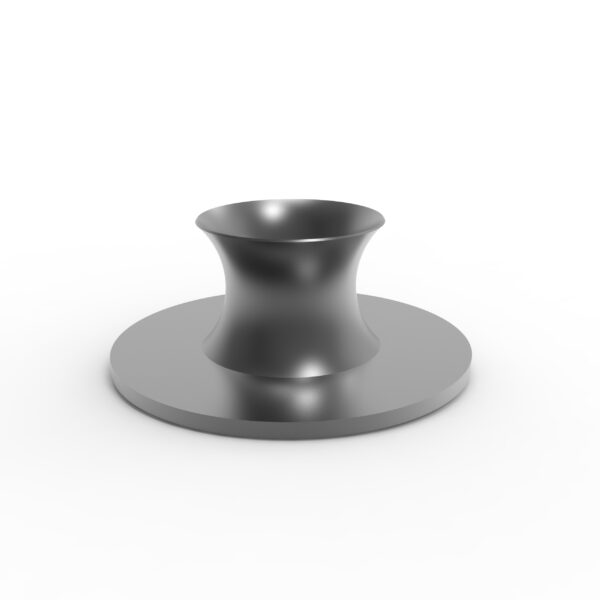

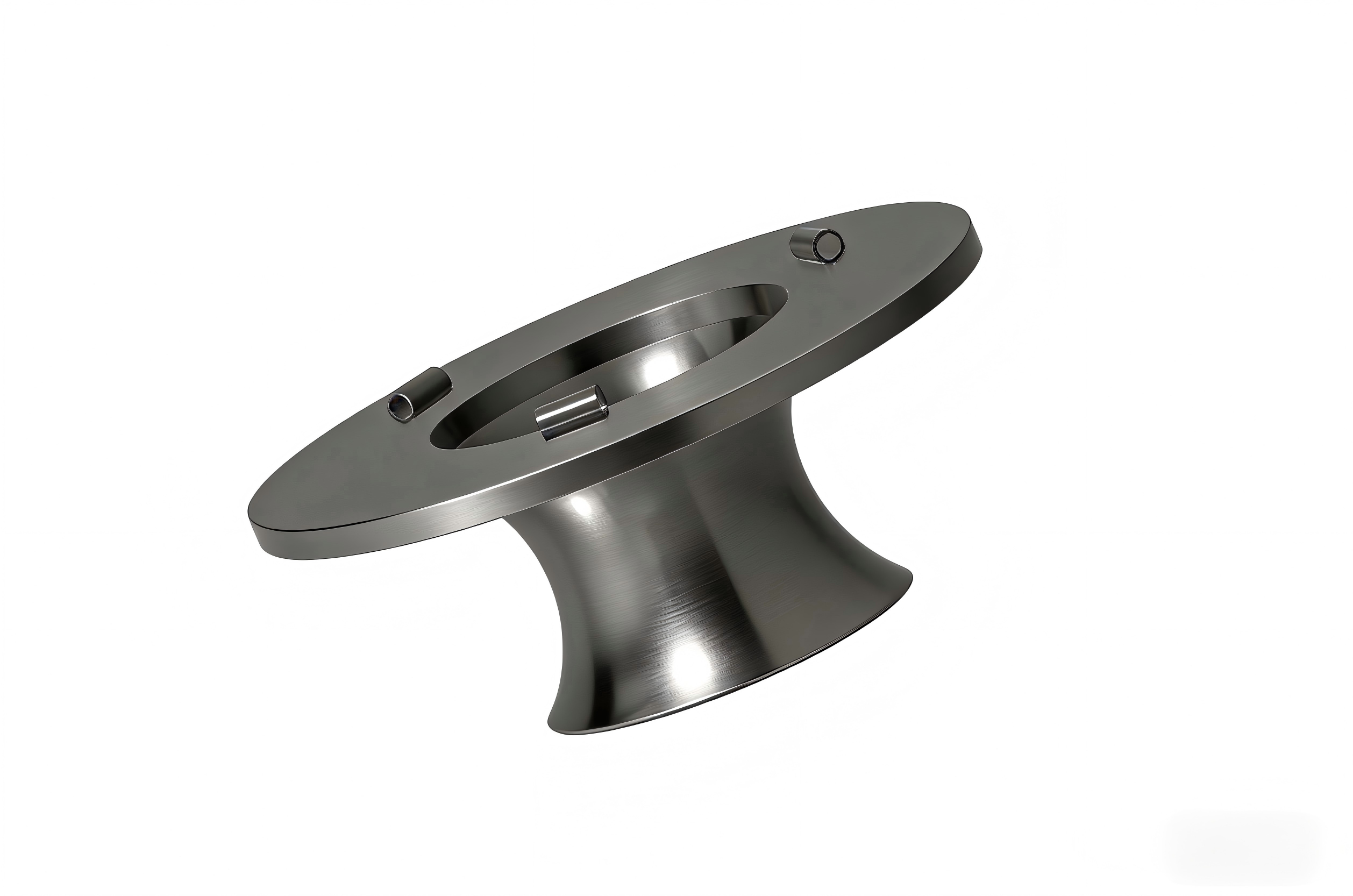

Sliding Base Plate

Heaters

Suspension Plate

Insulated Flange Plate

Rapping System

Electric Single Impact Rappers (ESI)

Magnetic Impulse Gravity Impact Rappers (MIGI)

Rapping Hammer

Hypalon Rapper Boot Seal

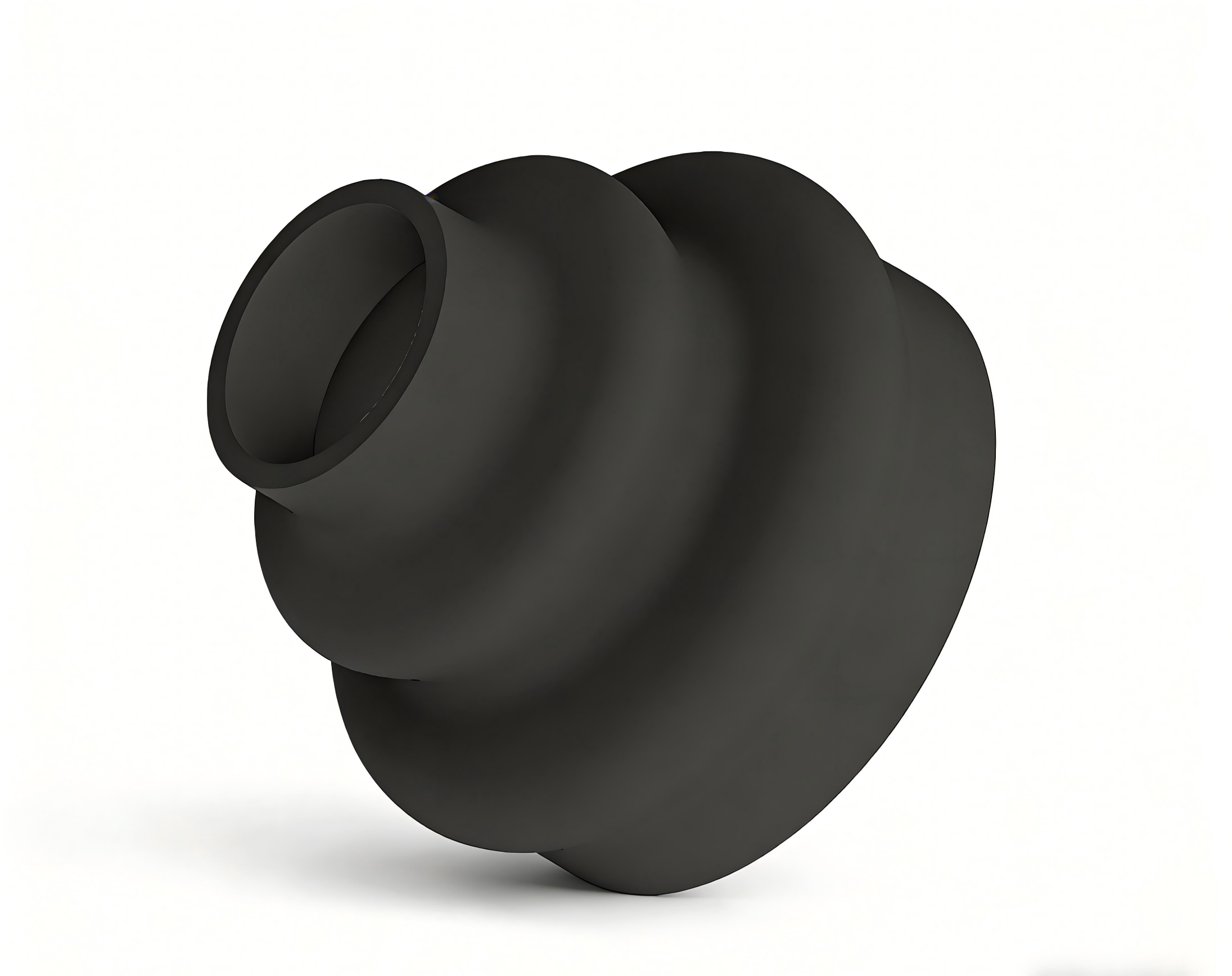

Fluoroelastomer Rapper Boot Seal

Rapper Rod Boot Clamps

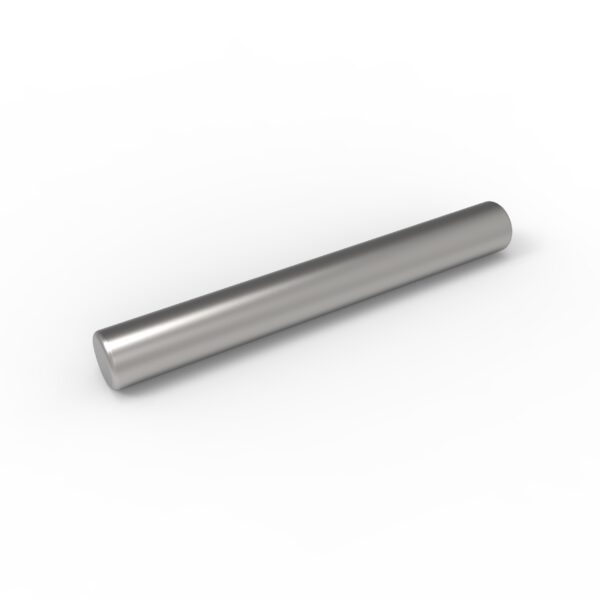

Rapper Piston

Rapper Socket for Vibrator

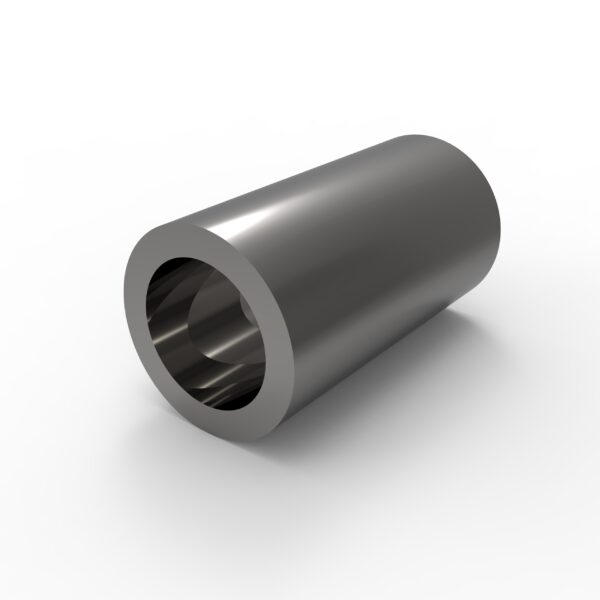

Sleeve Assembly

Clamp Coupling

Dust Bearing

Stop Ring

Drag Scraper System

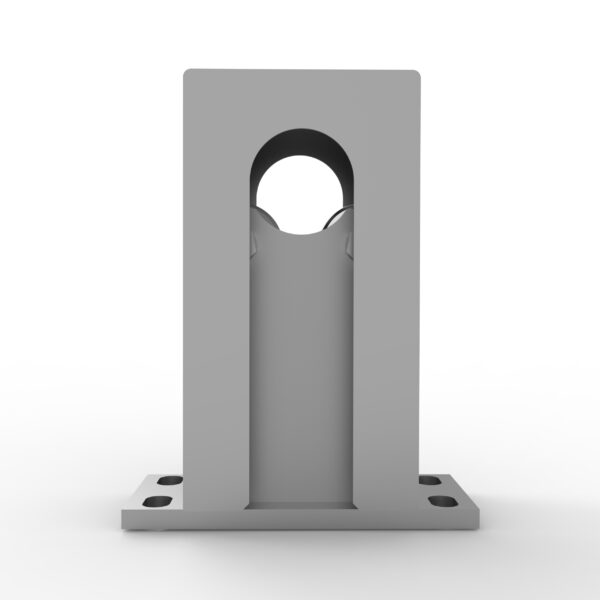

Bearing

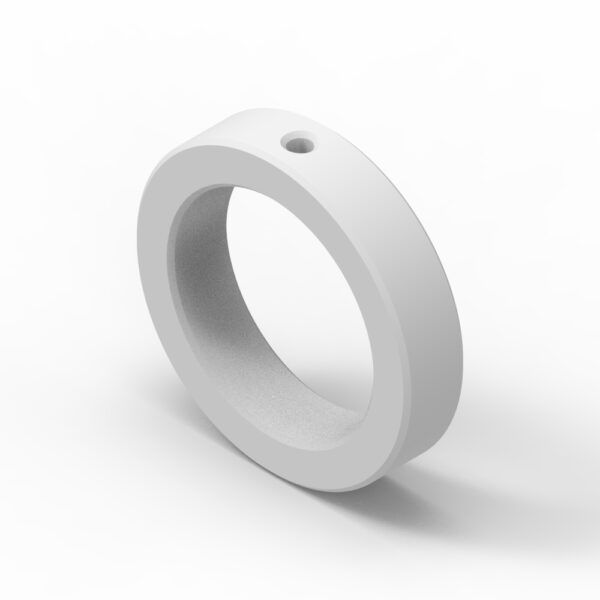

Locking Collar, Tailshaft

Bushing, Split Tailshaft

Need the Full Parts Catalog?

From collecting plates to rapper systems, our catalog includes everything you need to keep your ESP running at its best. Let us know what you’re looking for—and we’ll send the right information your way.

Request the Catalog

Bushing Outer/Inner Dia.	(Ø7 1/4'')/(Ø6 1/8'')
Bushing Width	10''
Base Length/Width/Height	(1'-6'')/7''/(1 7/8'')
Base Slot Dia.	Ø1 5/8''
Base Tilt Angle	40°
Weight	106 lb
Material	Cast Iron

Height	11.5''
Length	9.1''
Width	4.3''
Weight	16.75 lb
Material	20# Steel

Max. Length	118.11''
Plate Thickness	0.06''
Plate Width	0.59''
End Tube Dia.	Ø0.31''
Pin Length	1.18''
Pin Spacing	2.95''
Pin Arrangement	Throughout
Material	Q235B and SPCC

Max. Length	216.54''
Length of Cross section/Longitudinal section	1.38''/0.94''
Pin Spacing	1.97''
Pin Arrangement	Staggered U-type
Material	Q235B and SPCC

Length	166.9''
Width	3.0''
Height	3.9''
Weight	131.0 lb
Material	Q235B

Part No.	PB3280
Top/Bottom Port Inner Dia.	Ø2''/(Ø4 1/2'')
Height	4 3/8''
Thickness	3/16''
Weight	0.83 lb
Colour	Black
Max. Elongation	500%
Shore A Hardness	50-60
Material	Fluoroelastomer (FKM)

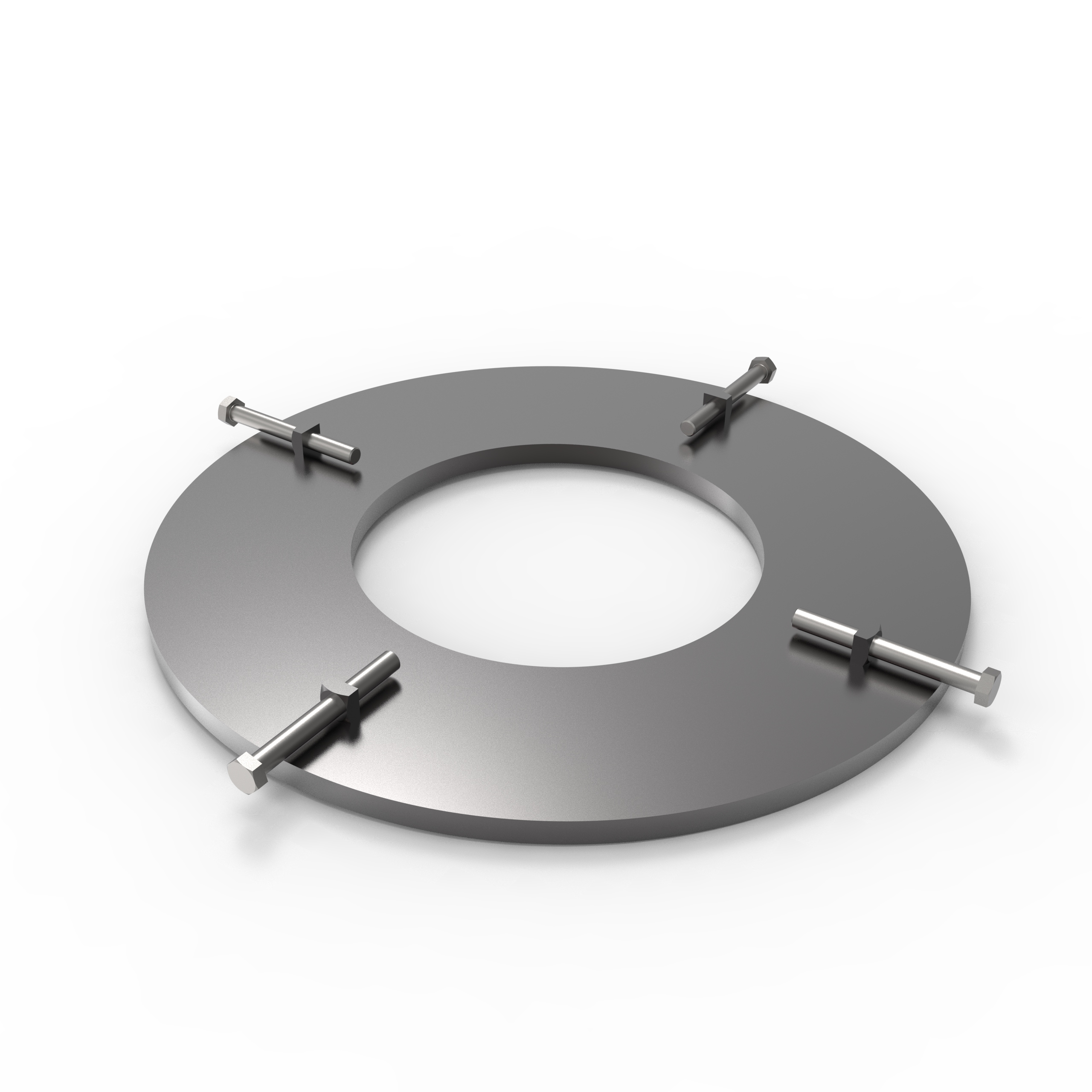

Part No.	PC2487C
Steel Plate Height/Dia.	1''/Ø28.35''
Central Hole Dia.	Ø16.50''
Nuts Distance	26''
Weight	118.60 lb
Material	Q235B and 20# steel

Part No.	PB3051BD
Operating Voltage	80KV
Length	20.50''
Rod Dia.	Ø2.76''
Both Ends Dia.	Ø2.57''
Weight	14.55 lb
Material	95% Al₂O₃

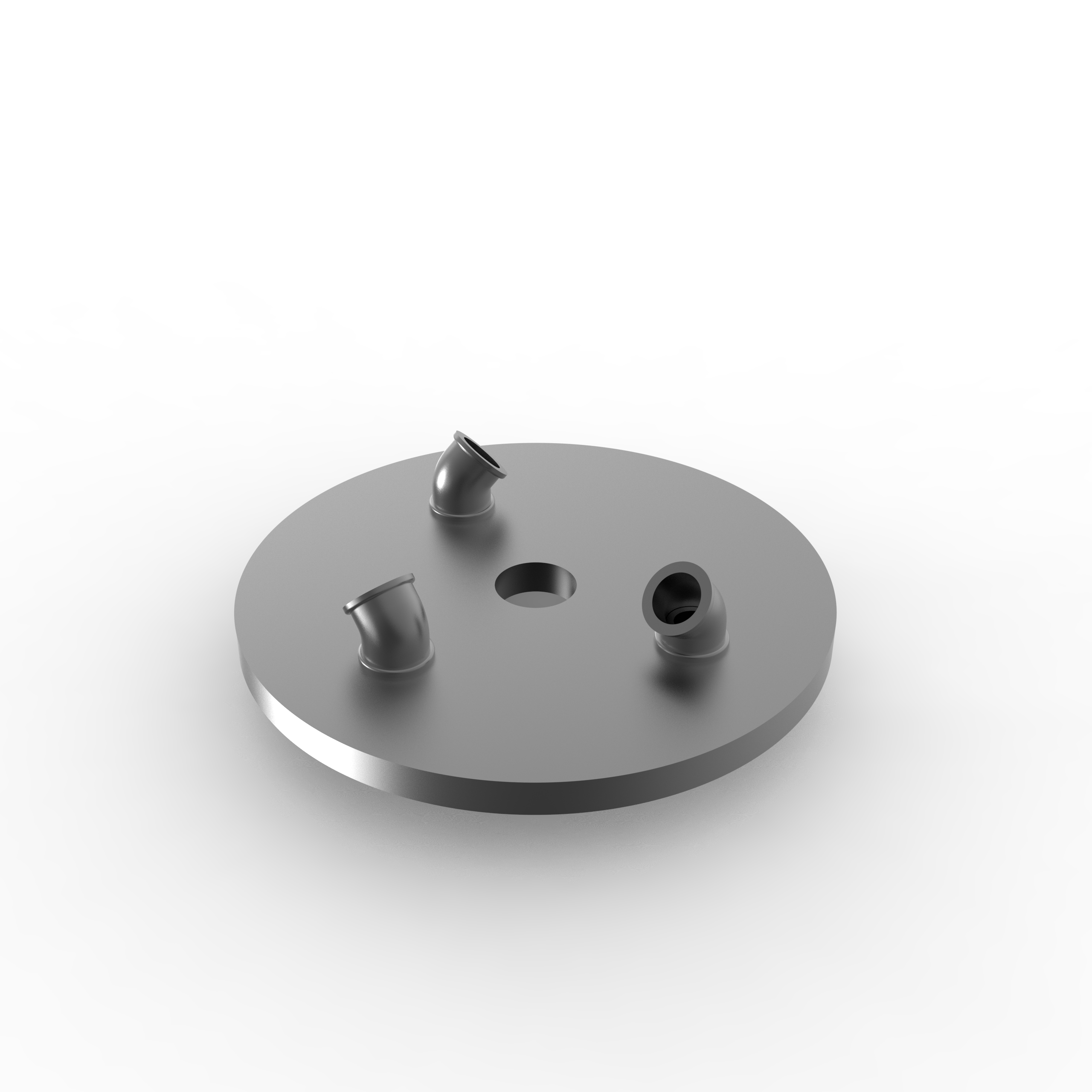

Part No.	PC2937C
Steel Plate Height/Dia.	1''/(Ø1'-4 1/4'')
Central Hole Dia.	2 1/4''
Rings Outer Dia./Length	Ø2.87''/0.51''
Inch Pipes Length	3.35''
Inch Elbow Angle	45°
Weight	58.20 lb
Material	Q235B and 20# steel

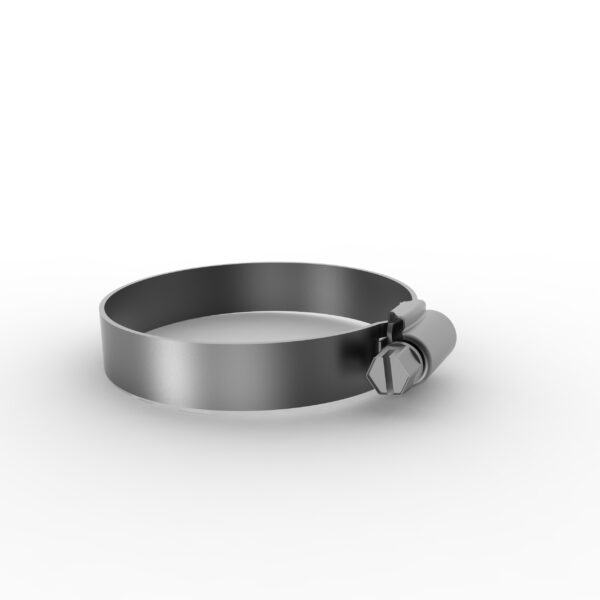

Part No.	PB3283/WA42436
Clamp Dia. Range	(Ø2” to Ø2 9/16”)/(Ø4 1/16'' to Ø5'')
Compatibility	used on Upper/Lower rubber rod boot
Weight	0.05 lb/0.08 lb
Material	Stainless steel

Part No.	PD3570-10
Width/Height	1.8''/1.8''
Steel Plate Top/Bottom Length	8''/14''
Holes Dia. on the Top/Bottom Surface	(Ø7/8'')/(Ø1 1/4'')
Holes Spacing	8''
Round Steel Height/Dia.	(1 1/2'')/Ø0.63''
Weight	10.1 lb
Material	Q235B and 20# steel

Part No.	PB3293
Top/Bottom Port Inner Dia.	Ø2''/(Ø2 7/8'')
Height	4''
Thickness	3/16''
Weight	0.44 lb
Colour	Black
Material	Chlorosulfonated Polyethylene (CSM)

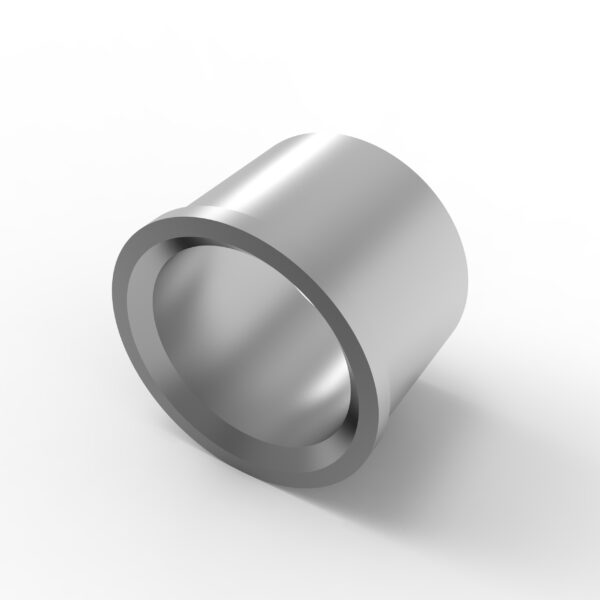

Part No.	PB3222
Length	4''
Outer/Inner Dia.	Ø5''/Ø4''
Open Edge Dia.	Ø5.25''
Chamfer	0.03''*45°
Weight	8.15 lb
Material	Graphalloy

Outer Dia.	Ø3''
Inner Dia.	Ø2''
Thickness	0.7''
Weight	0.88 lb
Material	316L and 20# Steel

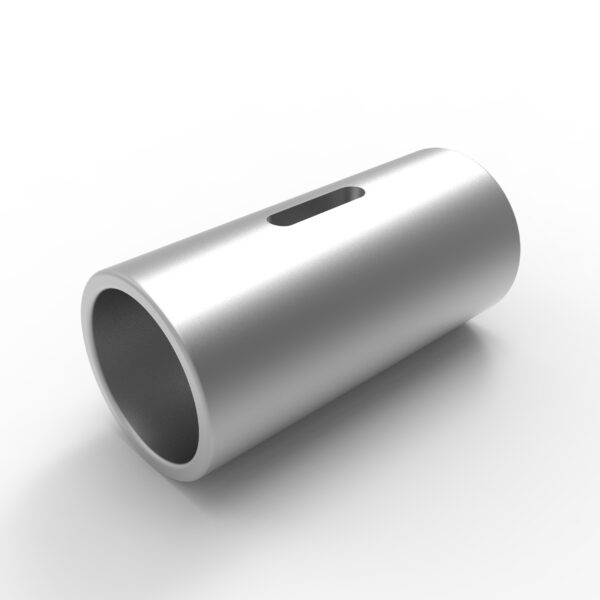

Part No.	PA1146C
Total Length	7''
Max. Outer Dia.	Ø3.3''
Opening Dia. at Both Ends	Ø2.7''/Ø1.9''
Slot Length	2.0''
Slot Width	0.5''
Weight	8.8 lb
Material	20# Steel

Part No.	CPD3588/CPD3418-WK
Height	31.5''/27.0''
Flange Holes Dia.	Ø0.56''/Ø0.69''
Flanges Dia.	Ø9.06''/Ø9.49''
Weight	46.3 lb/38.7 lb
Voltage	120Vdc/240Vdc
Coil Resistance	2.5Ω/8.3Ω
Color	Finished with gray primer and topcoat
Material	Q235B and Stainless steel

Part No.	PA1511(G11)/PB3400(G11)/PB3051B(G11)
Mechanical Strength	Compressive strength≥600MPa/Flexural strength≥150MPa
Operating Voltage	Withstand Voltage≥100KV/Breakdown Voltage≥120KV
Length	40''/48''/30''
Rod Dia.	Ø2 1/64''
Both Ends Dia.	Ø1.5''
Weight	8.8 lb/11.5 lb/5.5 lb
Material	Fiber Reinforced Polymer(FRP) G11 Class H

Part No.	CPB2481A
Height/Inner Dia.	2'/Ø1'
Thickness	1''
Weight	138 lb
Operating Voltage/Temp.	Rated Voltage≥80KV and Breakdown Voltage≥120KV at 932°F
Compression Load Test	Failure Load≥500KN
Dielectric Strength	210V/mil at 78.8°F
Volume Resistivity	4.6*10¹⁰Ω.cm at 572°F
Material	95% Al₂O₃

Length/Width/Height	17.51''/4.00''/0.75''
Weight	1.60 lb
Holes Dia.	Ø1''
Rated Working Voltage/Temp.	80KV at 392°F
Colour	White
Material	Virgin Telflon(PTFE)

Length	5.12''
Outer Dia.	Ø2.80''
Inner Dia.	Ø1.97''
Weight	4.50 lb
Material	25# Steel

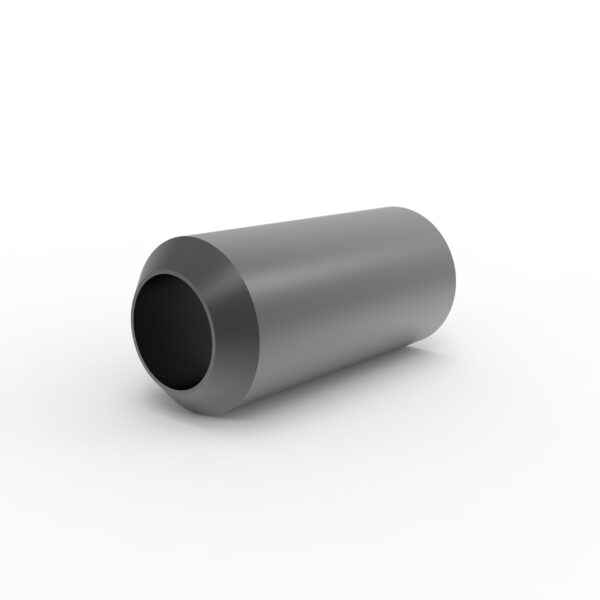

Part No.	PB2273
Outer Dia.	Ø2.4''
Length	5''
Chamfer	3/8''*45°
Weight	3.16 lb
Material	20# Steel

Height	12.1''
Width	5.2''
Hammer Radius	R1.6''
Weight	15.5 lb
Material	20# Steel and 45# Steel

Height	37.46''/37.50''
Upper/Lower Flange Holes Dia.	Ø0.55''/Ø0.43''
Upper/Lower Flange Dia.	Ø9.00''/Ø8.00''
Weight	46.3 lb
Voltage	120Vdc/240Vdc
Coil Resistance	2.6Ω/4.6Ω
Color	Finished with gray primer and topcoat
Material	Q235B and Stainless steel

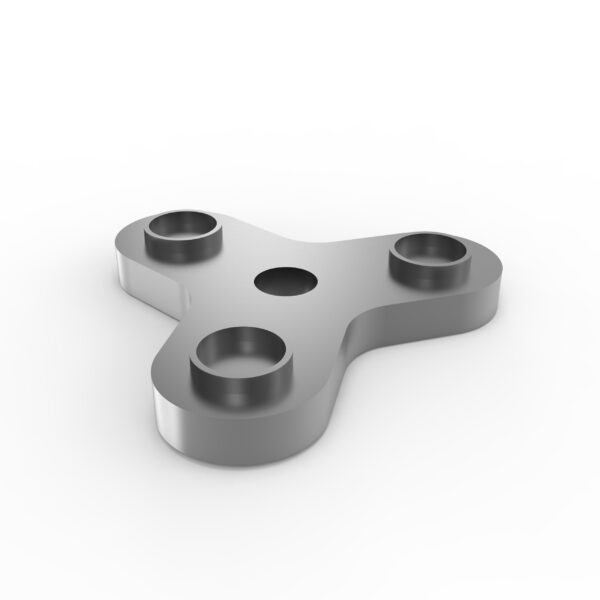

Part No.	PB2280
Steel Plate Central Hole Dia.	Ø2 1/8''
Guide Ring Outer Dia.	Ø2.9''
Length/Width/Height	(14 3/8'')/(1'-3 3/4'')/2''
Weight	41 lb
Material	Q235B and 20# steel

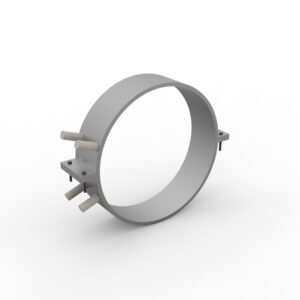

Outer Dia. of the Circular Ring	Ø14.75''
Thickness of the Circular Ring	3.94''
Weight	5.30 lb
Electrical	460V/480V, 400W
Material	Stainless Steel

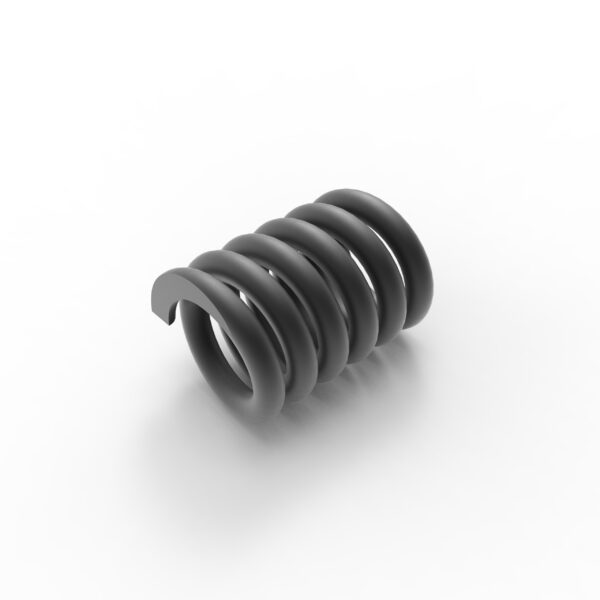

Part No.	PA1104/PA1105
Wire Dia.	(Ø25/32'')/(Ø29/32'')
Outer Dia.	Ø4.563''/Ø4.875''
Inner Dia.	Ø3.00''/Ø3.06''
Free Length	6.5''/7.5''
Spring Rate	(2160 lb/in between length of 6.13'' and 5.81'')/(3620 lb/in between length of 7.09'' and 6.86'')
Weight	10.14 lb/11.46 lb
Material	60Si2MnA

Part No.	PB2547
Corona Shield Height/Dia.	(8 7/8'')/Ø1'
Steel Plate Height/Outer Dia.	1''/Ø2'
Steel Pipes Length/Outer Dia.	2''/(Ø1.06'')
Weight	105.6 lb
Material	Q235B and 20# steel

Max. Length	628.50''
Tube Dia.	Ø1.50''/Ø2.01''
Pin Length	1.50''/2.24''
Pin Spacing	3''/6''
Pin Arrangement	Opposed/Staggered
Material	Q235B and SPCC

Part No.	PD3570-11A/PD3570-12C/PD3570-16G
Length	12.8''/13.8''/17.8''
Width	4''
Height	1.5''
Holes Dia. on the Top/Bottom Surface	(Ø7/8)''/(Ø1 1/4'')
Holes Spacing	11''/12''/16''
Weight	22 lb/23 lb/30 lb
Material	Q235B

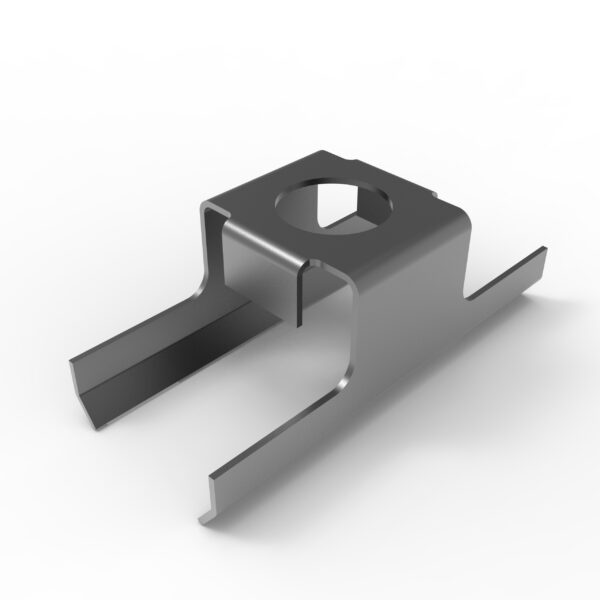

Part No.	PD3570-11B/PD3570-12D/PD3570-16H
Length	9''/10''/14''
Width	4''
Height	3 1/2''
Hole Dia.	2 1/4''
Weight	2.0 lb/2.5 lb/5.5lb
Material	Q235B

Part No.	PB2414
Length/Width	4''/4''
Central Hole Dia.	Ø1 1/16''
Height	3/4''
Weight	3.30 lb
Material	Q235B

Part No.	PB3562
Piston Body Length/Dia.	18''/(Ø2 1/4'')
Steel Head Length/Dia.	1/2''/(Ø1 1/4'')
Piston Fillet Rad.	R1/4''
Weight	20 lb
Material	45# steel and Stainless steel
